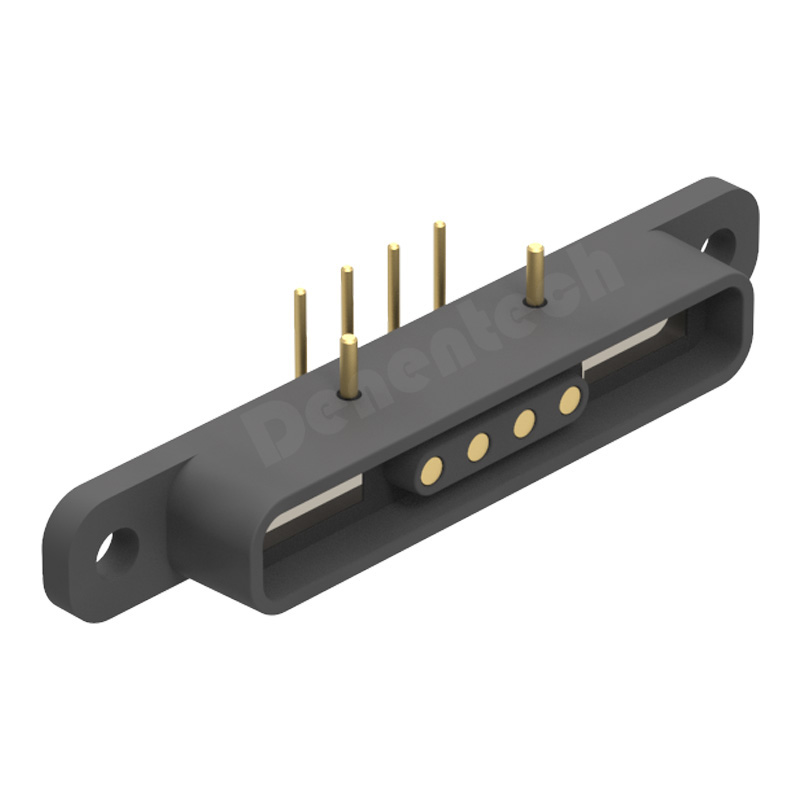

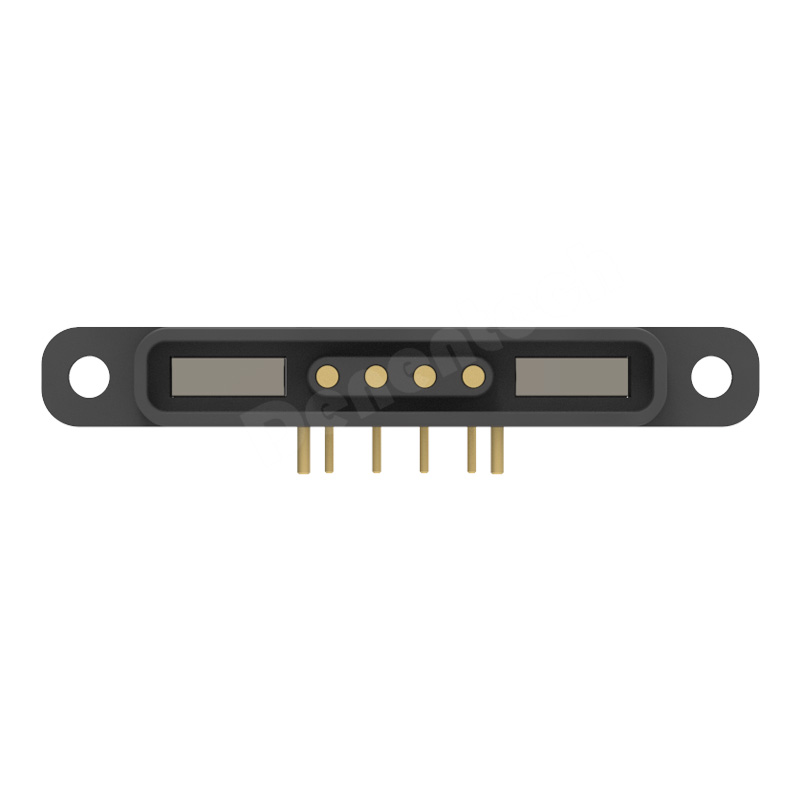

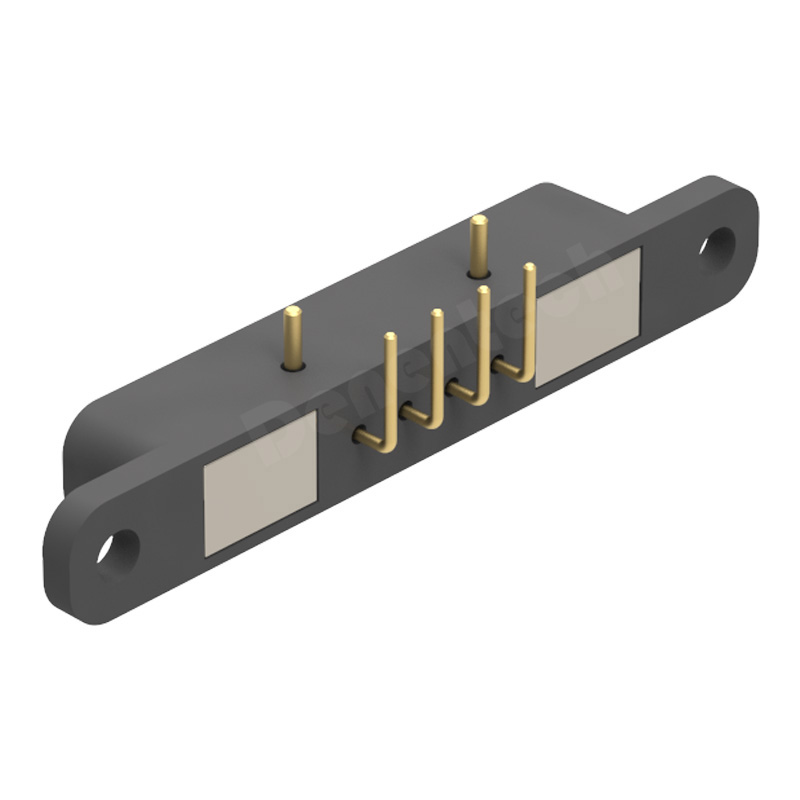

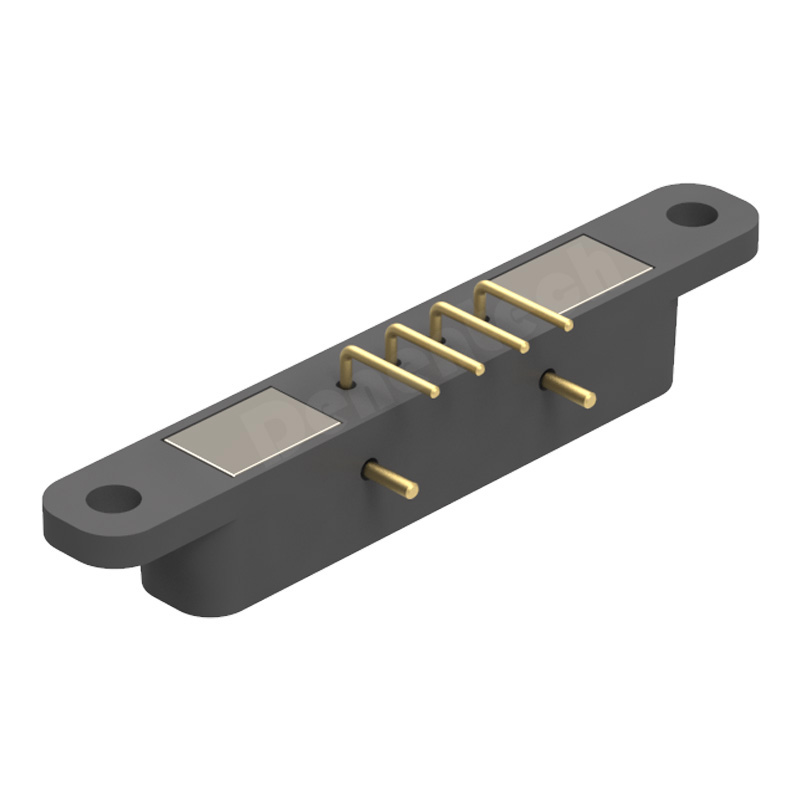

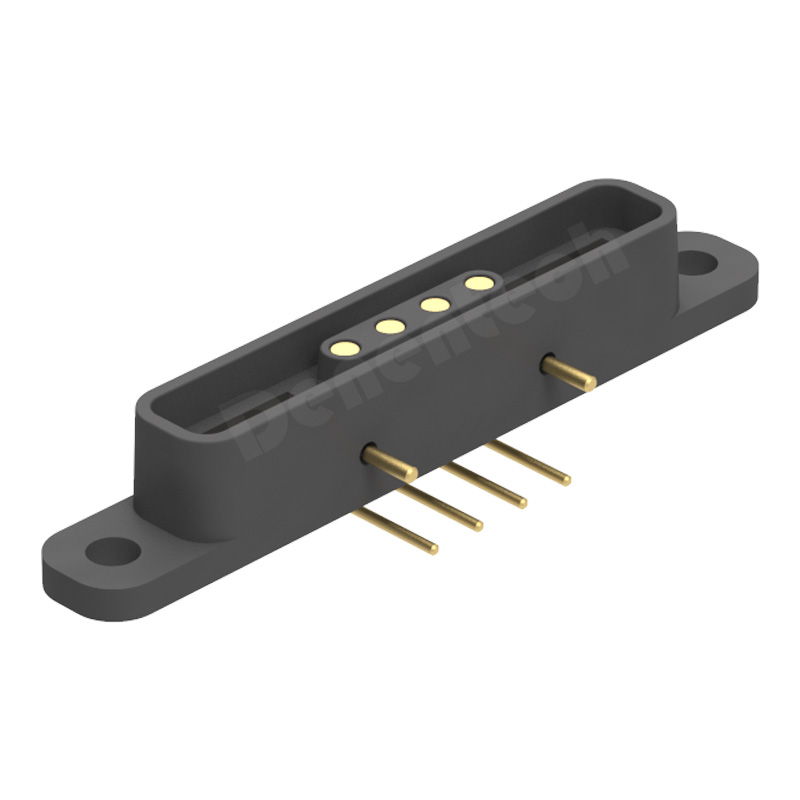

Denentech factory directly supply Rectangular magnetic pogo pin 4P right angle female usb c pogo pin magnetic

Serial Code : Product Code : MHPX-04

Rated current :

1.0AMP

Contact Resistance :

50mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product details Features Drawing Accessory products Related products Knowledge Related videos Contact us

Rectangular Magnetic Connector Uses High Quality Raw Materials

The Denentech rectangular magnetic pogo pin connector is composed of pogo pins, magnets and plastics. It adopts high-quality brass, heat-resistant plastics and strong magnets to enable simultaneous charging and data transmission.

Rectangular Magnetic Connector Uses High Quality Raw Materials
High Quality Rectangular Magnetic Connector

High Quality Rectangular Magnetic Connector

The rectangular magnetic pogo pin features various external structural designs and super-strong magnetic automatic adsorption. It has changed the traditional connector methods, enhanced the user experience, and ensured a stable and reliable connection between the male and female connectors.

Application Of Rectangular Magnetic Connector

The Denentech rectangular magnetic pogo pin connector supports high customization to meet specific performance requirements such as stroke, height and electrical properties. Moreover, its unlimited molding design can create many different shapes and styles for specific applications, enabling it to be widely used in various fields of multiple industries.

Application Of Rectangular Magnetic Connector
product name

Rectangular magnetic connector female

Pitch

2.54mm

Plastic height

H6.0mm

Rated current

3AMAX

Row number

single row

Connection type

Right Angle DIP

Pin number

4pin

Pin material

Brass

Surface treatment

Au 1-3u"

Contact surface

plane contact

Plastic material

HTN

Magnets

N52NdFeB

Product features

temperature resistance and flame retardant

Application fields

Smart wear, smart home, aerospace, medical equipment, industrial equipment, etc.
