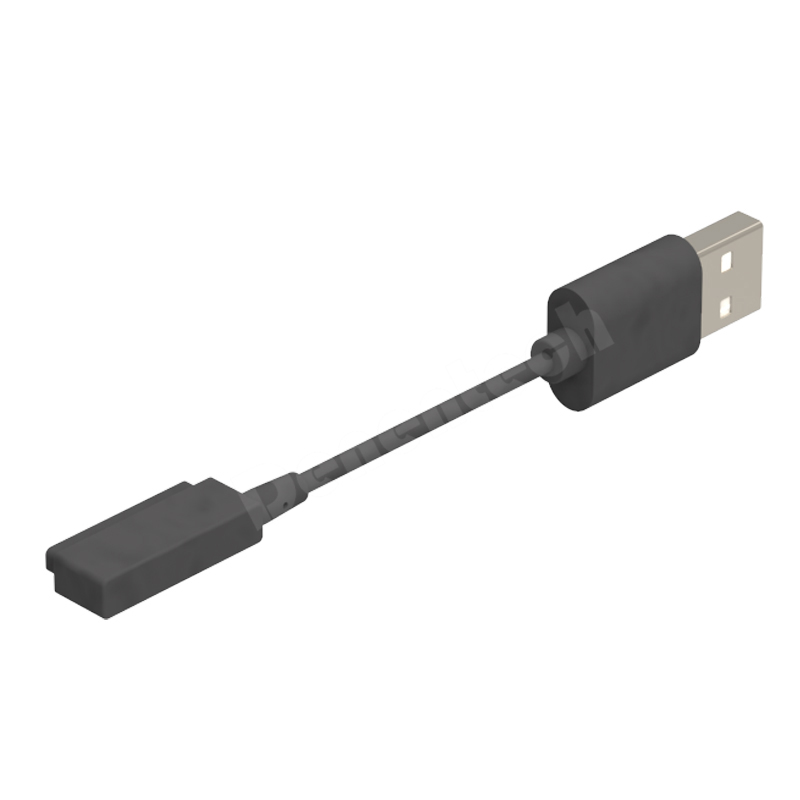

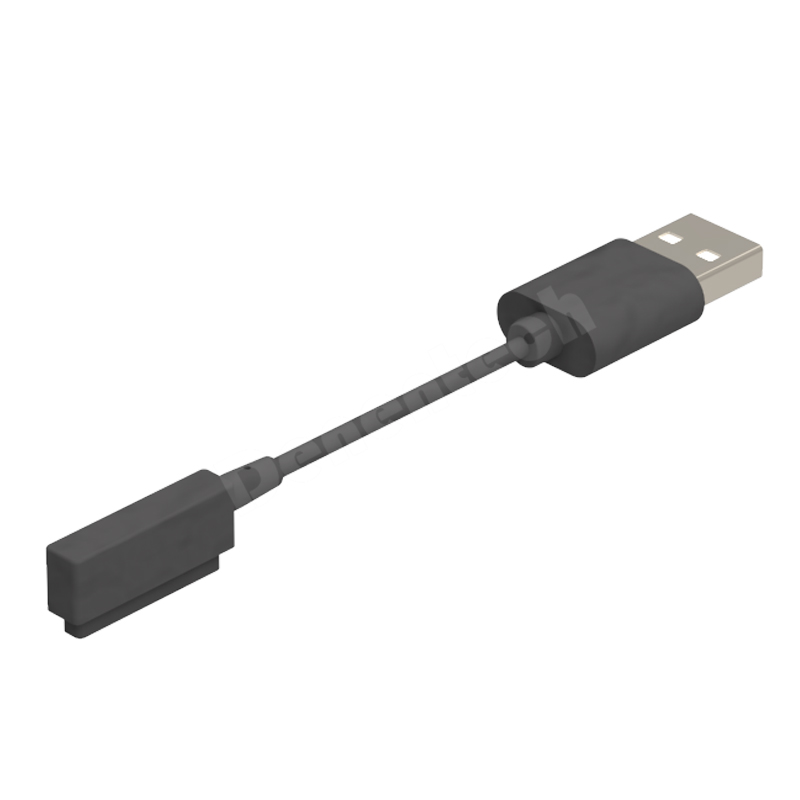

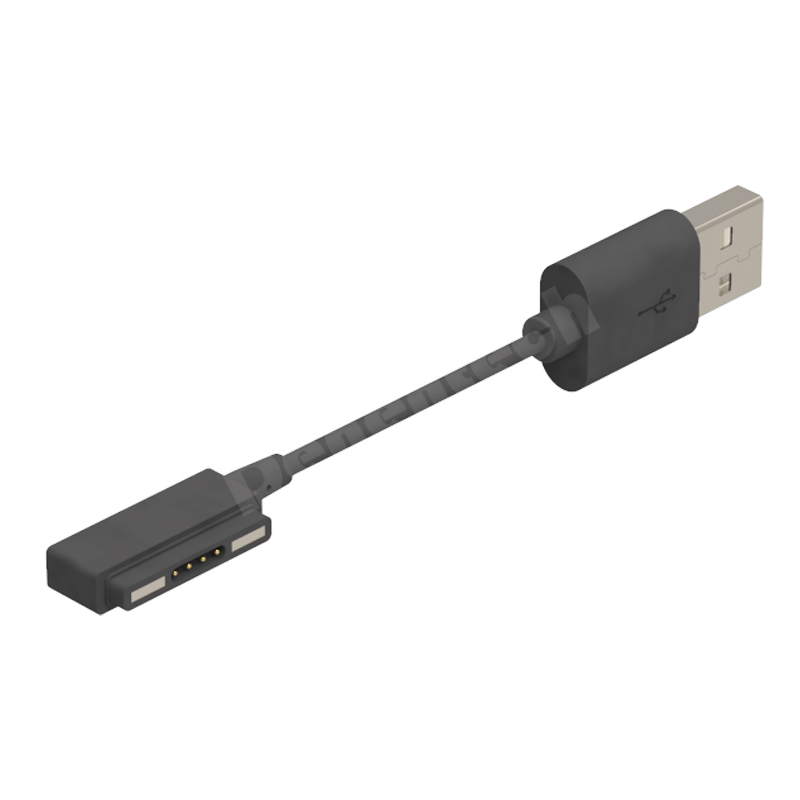

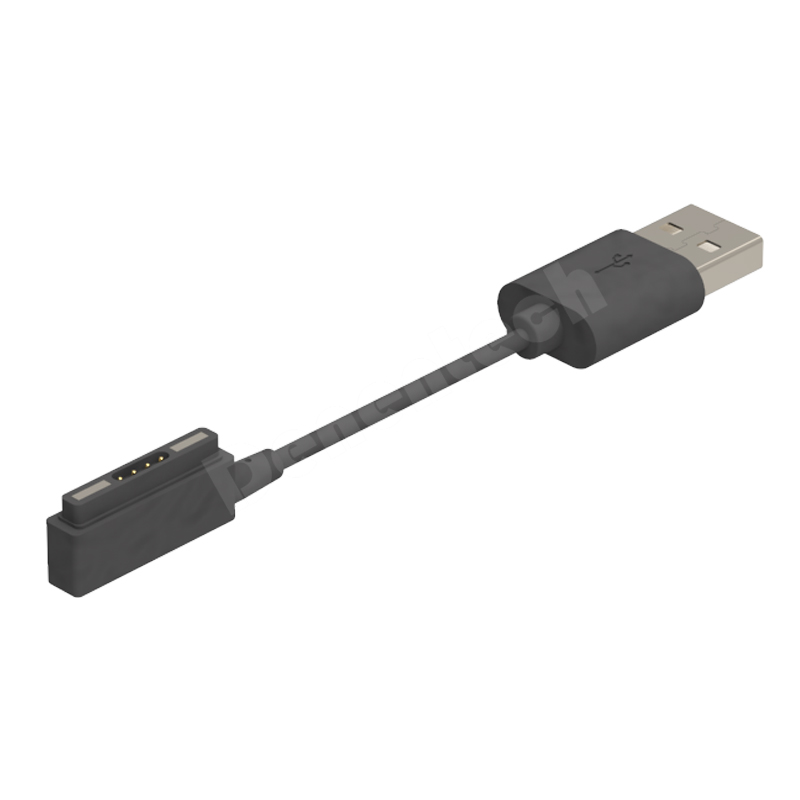

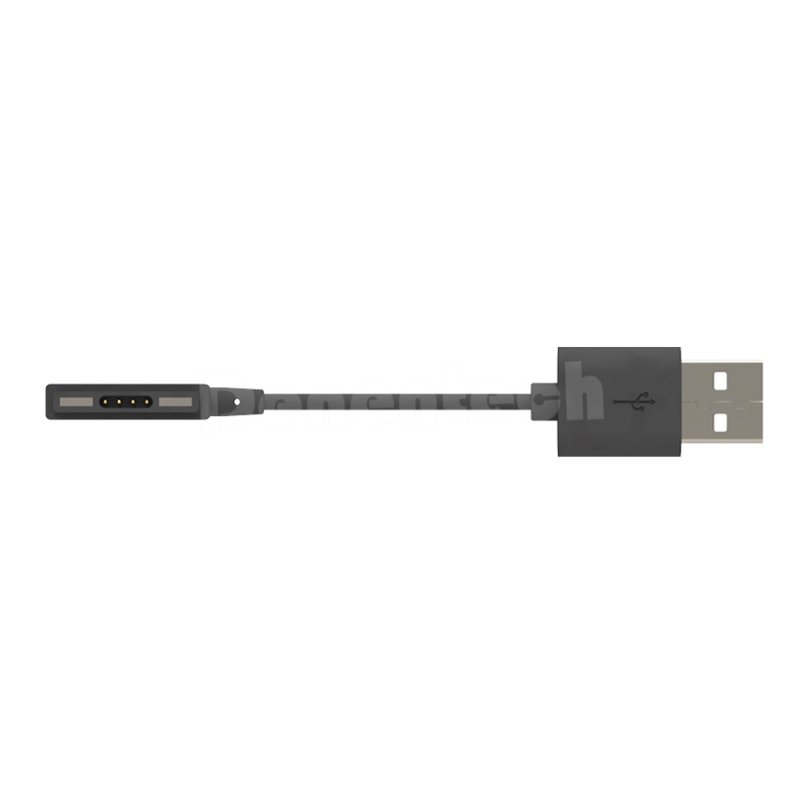

Denentech good quality factory directly pogo pin 4P male cable magnetic pogo pin connector 4pin cable wire

Serial Code : Product Code : MVSX-04XX

Rated current :

5.0AMP

Contact Resistance :

50mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us

Rectangular Magnetic Cable Uses High Quality Raw Materials

The Denentech rectangular magnetic pogo pin cable is composed of pogo pins, magnets , plastics and usb. It adopts high-quality brass, heat-resistant plastics and strong magnets to enable simultaneous charging and data transmission.

Rectangular Magnetic Cable Uses High Quality Raw Materials
 High Quality Rectangular Magnetic Cable

High Quality Rectangular Magnetic Cable

The rectangular magnetic pogo pin cable features various external structural designs and super-strong magnetic automatic adsorption. It has changed the traditional connector methods, enhanced the user experience, and ensured a stable and reliable connection between the male and female connectors.

Application Of Rectangular Magnetic Cable

The Denentech rectangular magnetic pogo pin cable supports high customization to meet specific performance requirements such as stroke, height and electrical properties. Moreover, its unlimited molding design can create many different shapes and styles for specific applications, enabling it to be widely used in various fields of multiple industries.

Application Of Rectangular Magnetic Cable
product name

Rectangular magnetic connector male

Pitch

2.54mm

Plastic height

H6.0mm

Rated current

3AMAX

Row number

single row

Connection type

Straight DIP

Pin number

4pin

Pin material

Brass

Surface treatment

Au 1-3u"

Contact surface

concave contact

Plastic material

HTN

Magnets

N52NdFeB

Product features

temperature resistance and flame retardant Application fields : Smart wear, smart home, aerospace, medical equipment, industrial equipment, etc.

Press stroke

1.0mm

Elastic force

90G±20G
