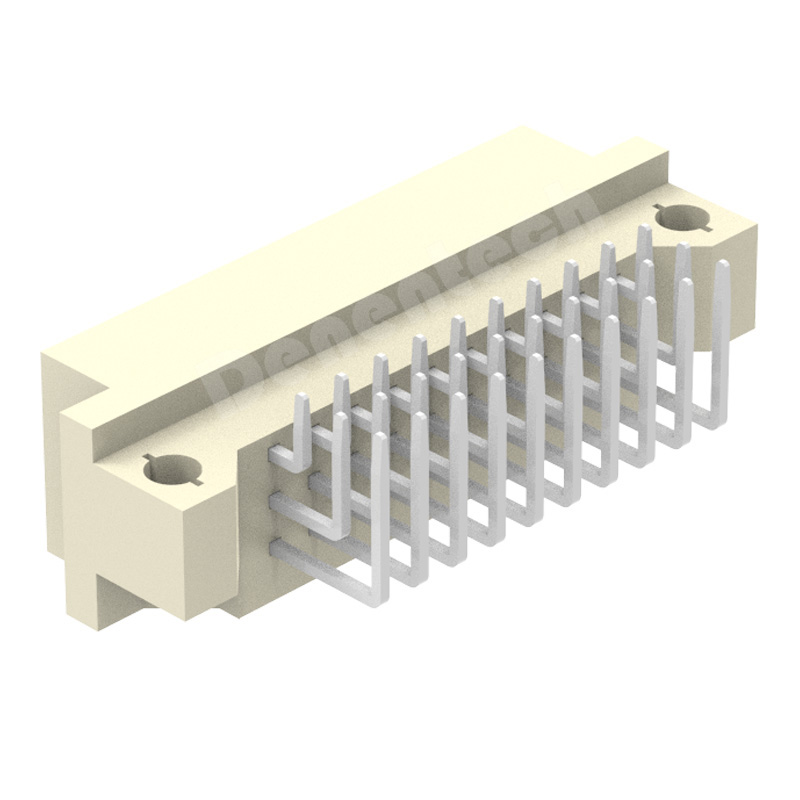

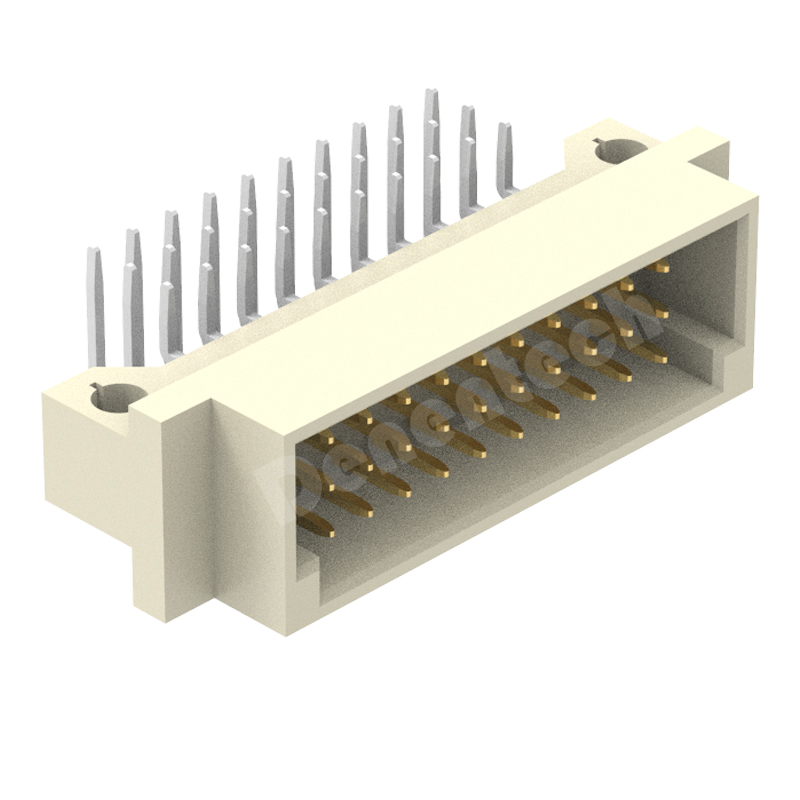

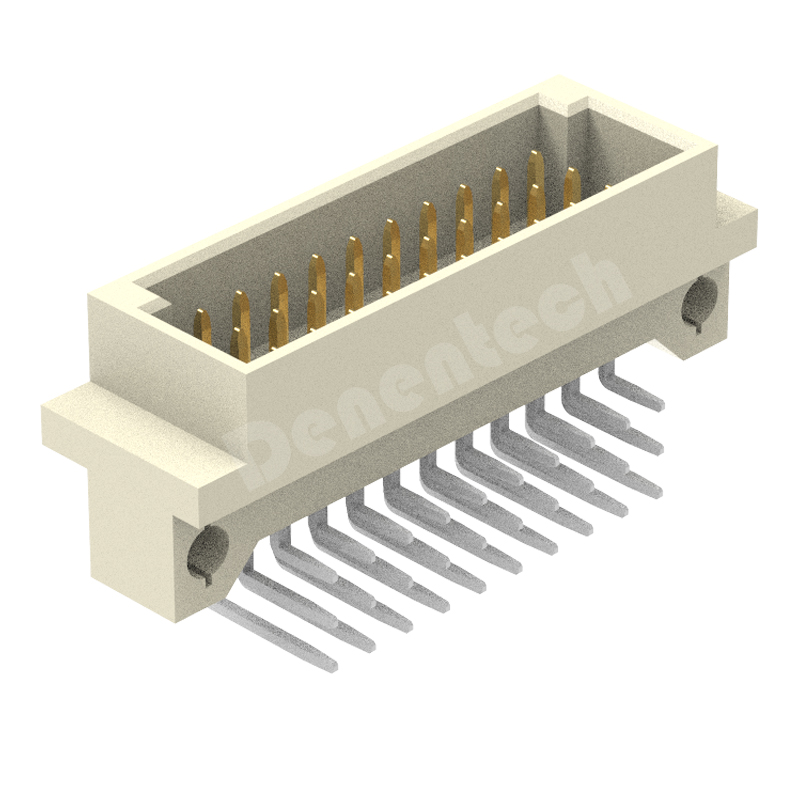

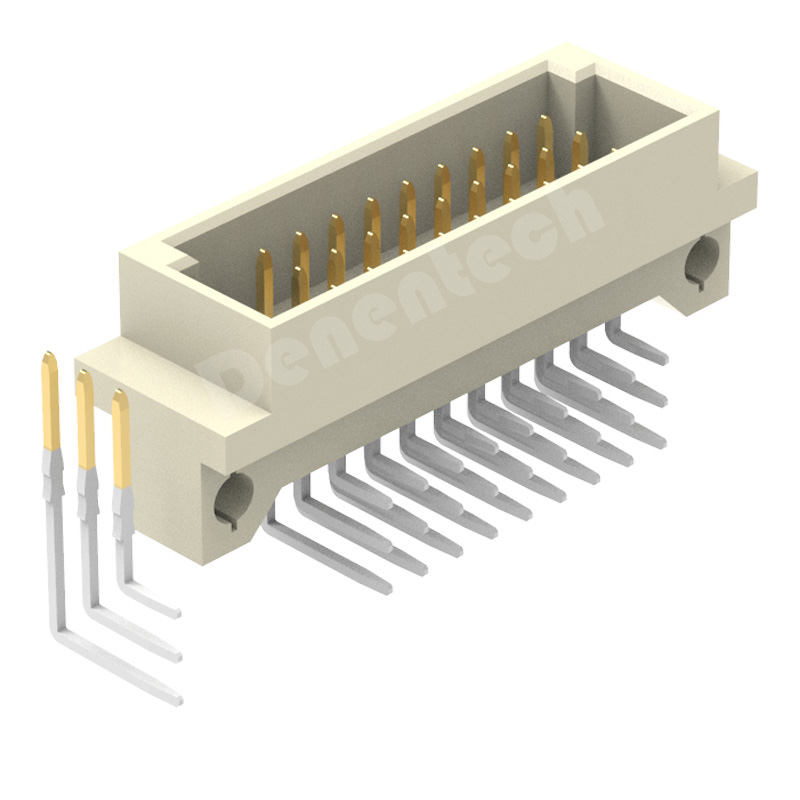

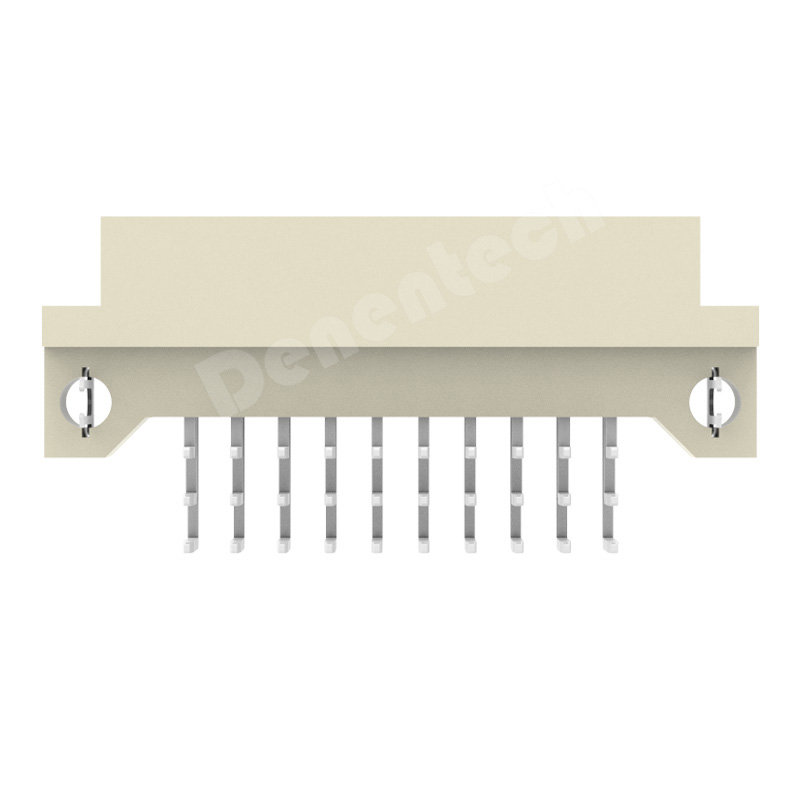

Denentech factory outlet 2.54MM triple row male right angle DIP DIN41612 Connector

Serial Code : Product Code : DI11-XX3T0RAN2XX

Rated current :

3AMP

Contact Resistance :

30mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeaturesDrawingAccessory productsRelated productsKnowledgeRelated videosContact us

Denentech DIN41612 Connector Uses High Quality Raw Materials

The Denentech DIN41612 connector is composed of terminal + plastic, using high-quality brass and high-performance plastic, which improves the reliability and stability of the connector.

Denentech DIN41612 Connector Uses High Quality Raw Materials
High Quality DIN41612 Connector

High Quality DIN41612 Connector

The diverse positioning and locking designs of the DIN41612 triple row 90-degree European-style socket connectors ensure the accurate mating of sockets and plugs, increase a certain fastening force, and guarantee the mechanical stability of the electrical connection.

Application Of DIN41612 Connector

The multi-row and multi-column design as well as various installation methods of DIN41612 connectors form high-density connections to meet different circuit connection requirements and enable multiple signal and power connections, thus being widely used in various different fields.

Application Of DIN41612 Connector
product name

2.54MM triple row male right angle DIN41612 connector

Pitch

2.54mm

Plastic height

H11.50mm

Rated current

3.0AMP

Row number

triple row

Connection type

Right Angle DIP

Pin number

30-96pin

Pin material

Brass

Surface treatment

Semi-Suk Kim

Plastic material

PBT

Product features

Temperature resistance/flame retardancy

Application fields

Communication, machinery manufacturing, industrial control, military industry, rail transit, electric power, medical treatment, etc.
