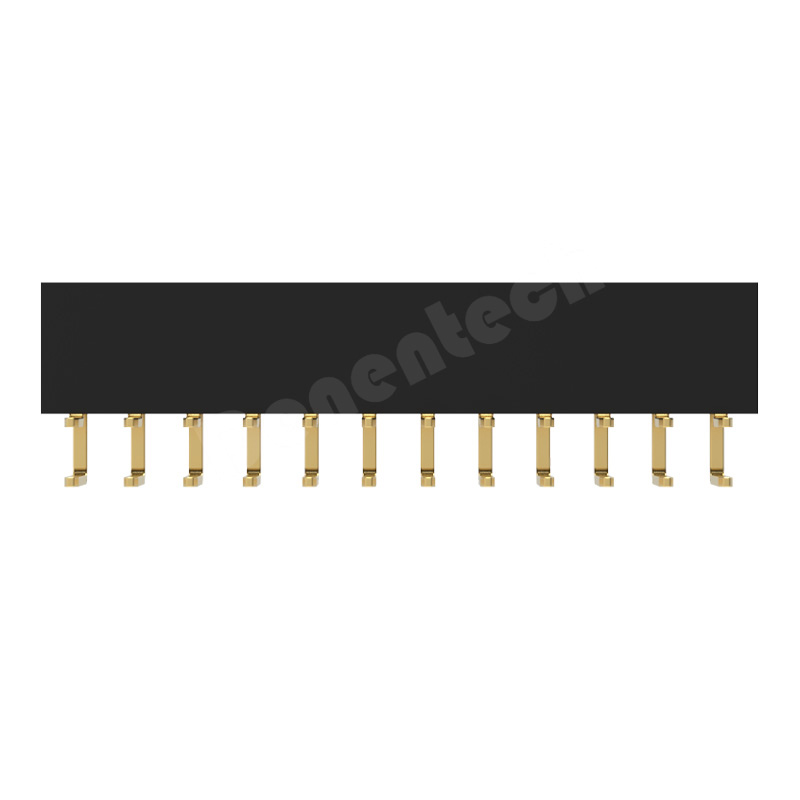

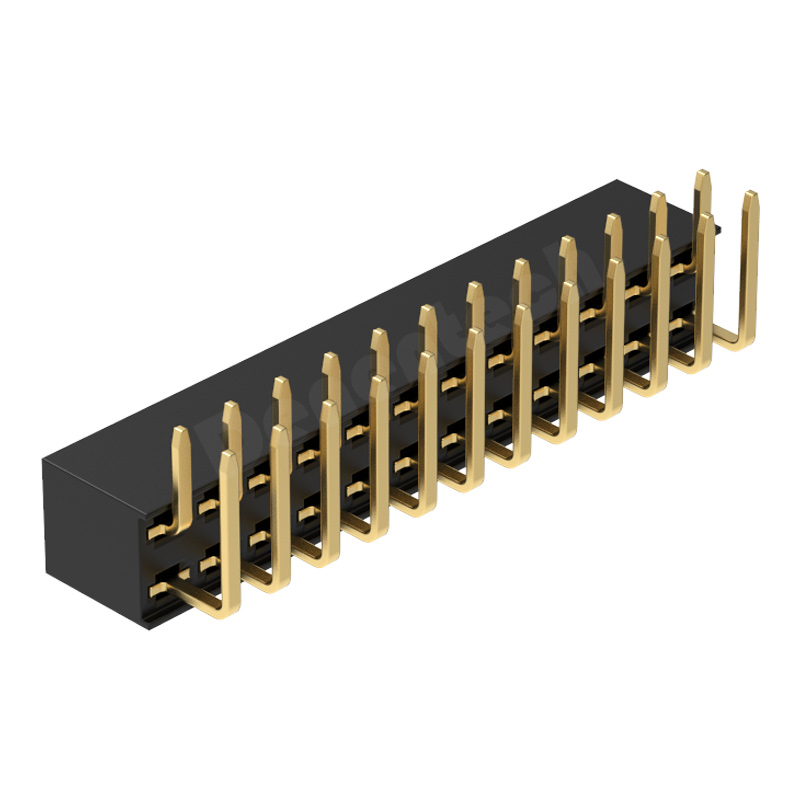

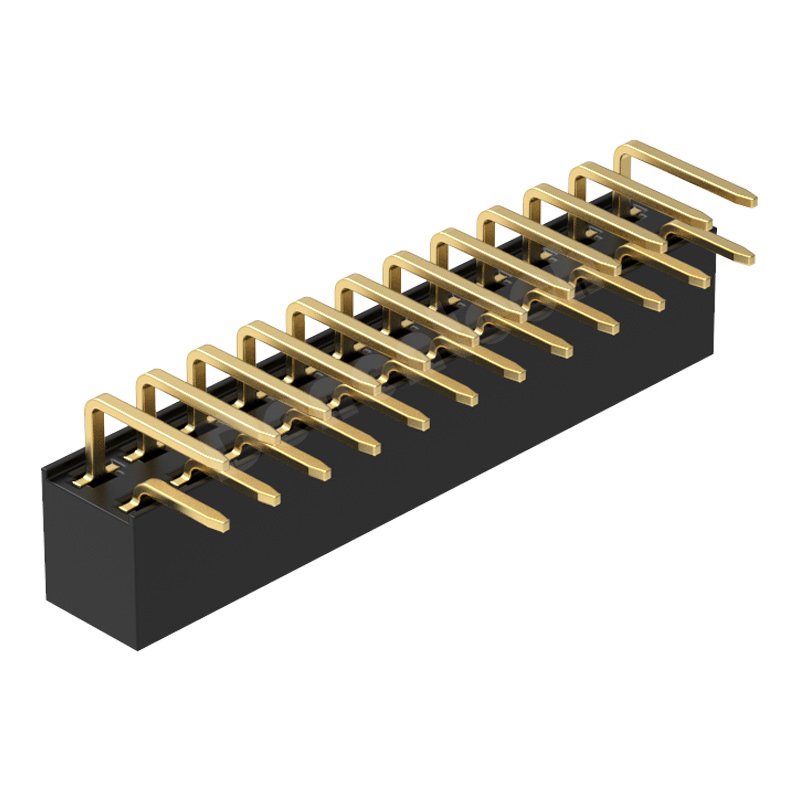

Denentech 2.54MM female header H5.7 double row right angle dual row female header connector

Serial Code : Product Code : F557-XXDG0RAXXX

额定电流 :

3.0AMP

接触电阻 :

20mΩ Max

耐点压值 :

500VAC/1分钟

绝缘电阻 :

1000mMin

温度范围 :

-40~105℃

端子材质 :

铜合金

触点电镀 :

镀金/镀镍

绝缘材料 :

UL94V-0

标准 :

PA6TorLCP+30%GF

包装 :

管装/袋装/盒装(标准)

交期 :

7-10天

环保 :

ROHS
产品详细信息
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsRelated videosKnowledgeContact us

Female header uses high quality raw materials

The Denentech 2.54mm female connector uses high-quality brass and high-temperature plastic according to international standards, ensuring faster signal current transmission speed and lower signal loss rate, thereby improving the stability and reliability of the connection.

Female header uses high quality raw materials
Female header electroplating process

Female header electroplating process

The surface of the Denentech 2.54mm female header is treated with multiple layers of electroplating to ensure that the 2.54mm female header passes strict ROHS verification and 24H salt spray testing.

Denentech female header automated production

Denentech adopts fully automated production of 2.54mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality female header connectors!

Denentech female header automated production
Product name :

2.54mm female header connector

Pitch

2.54mm

Plastic height

H5.7mm

Pin length

3.00mm,3.20mm,3.50mm,etc.

Row number

dual row

Pin number

2-40pin

Connection type

Right Angle DIP

Rated current

3A

1A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PA66, PA46, PBT, PA6T, PA9T, PPS, LCP, etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
