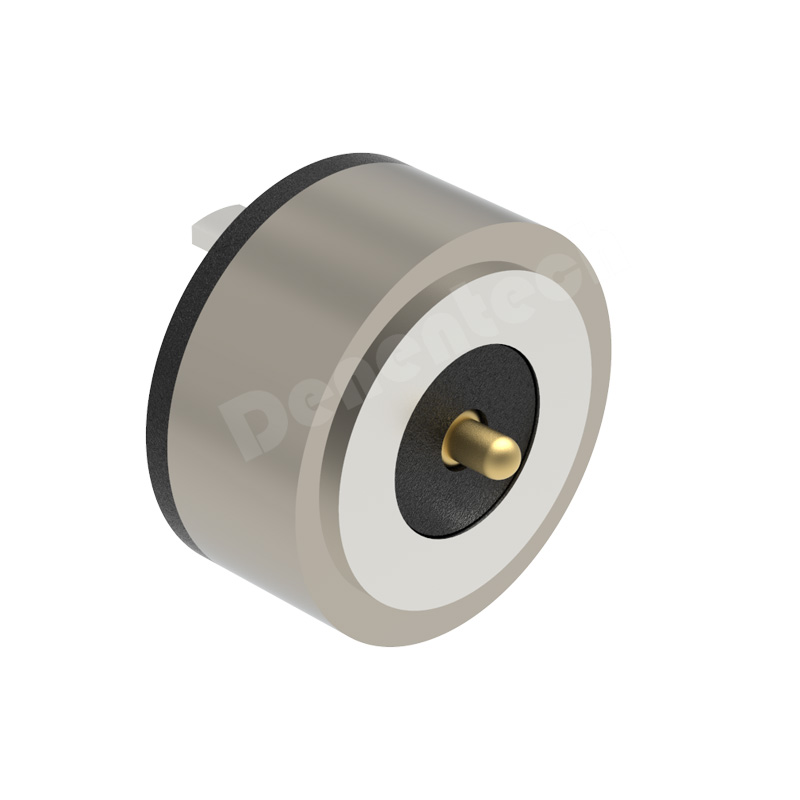

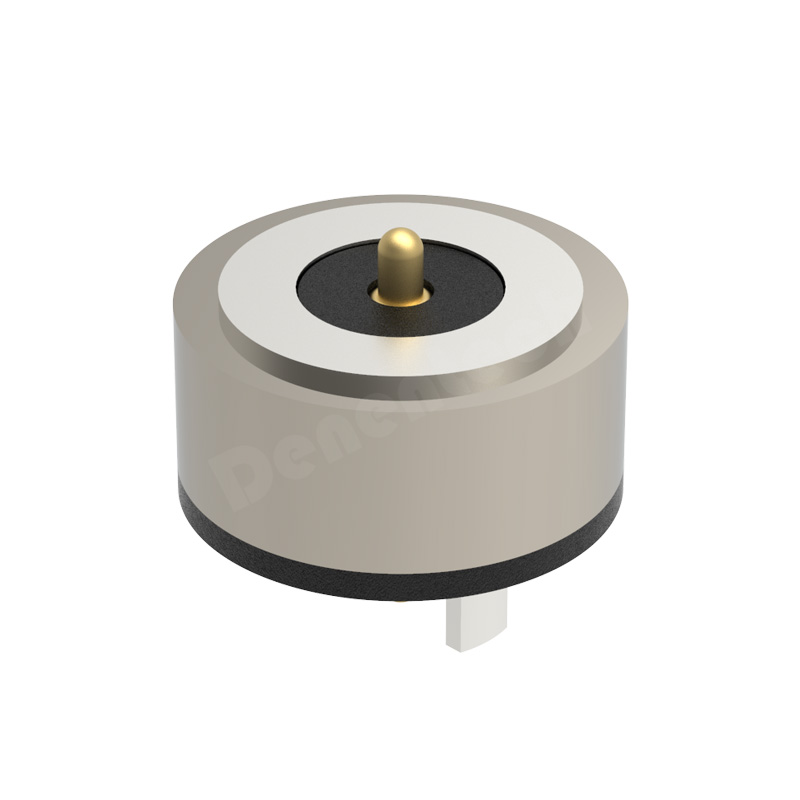

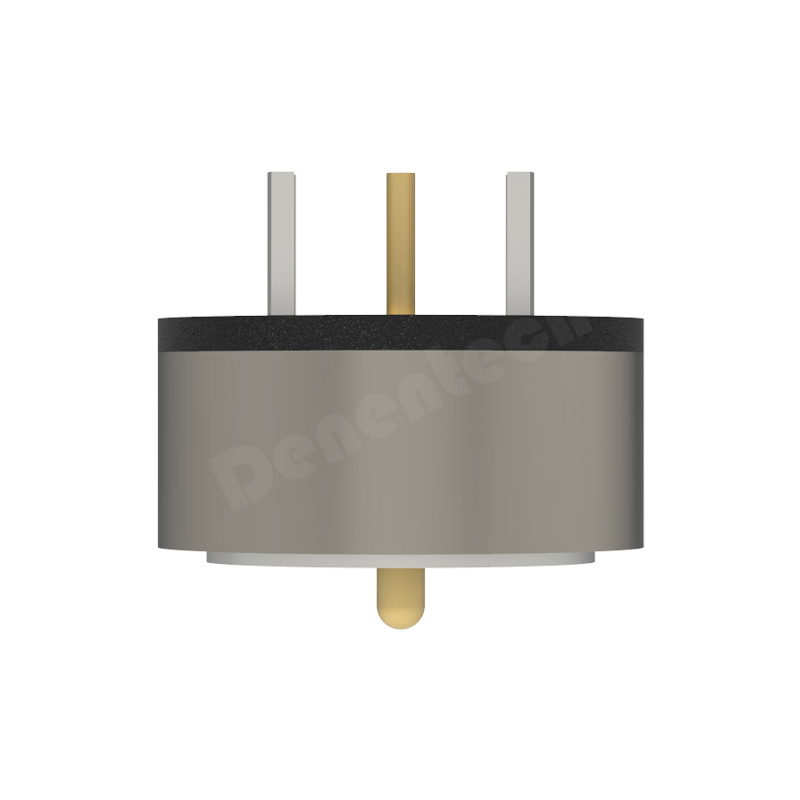

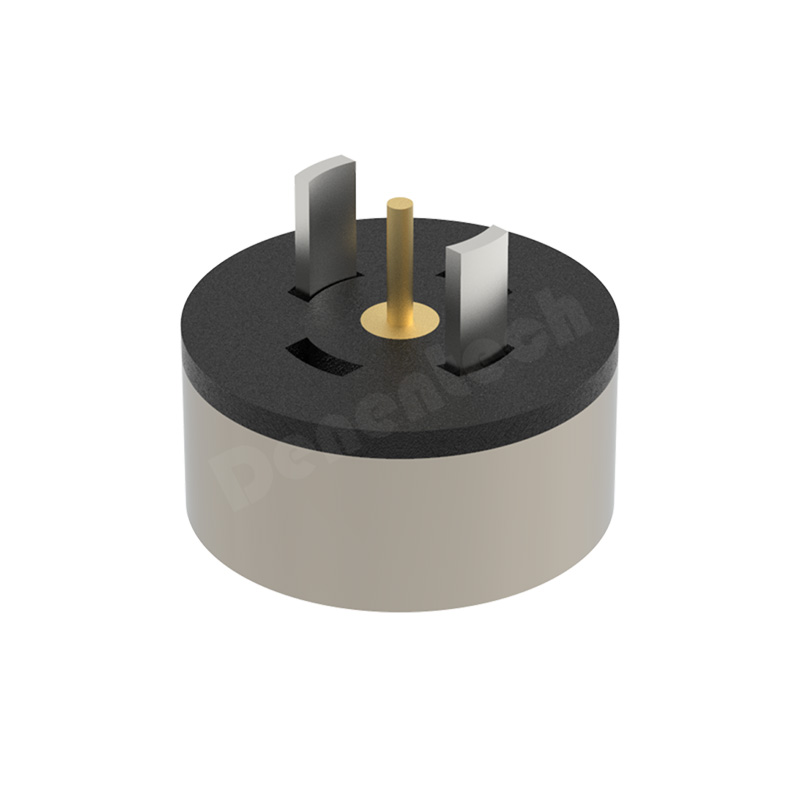

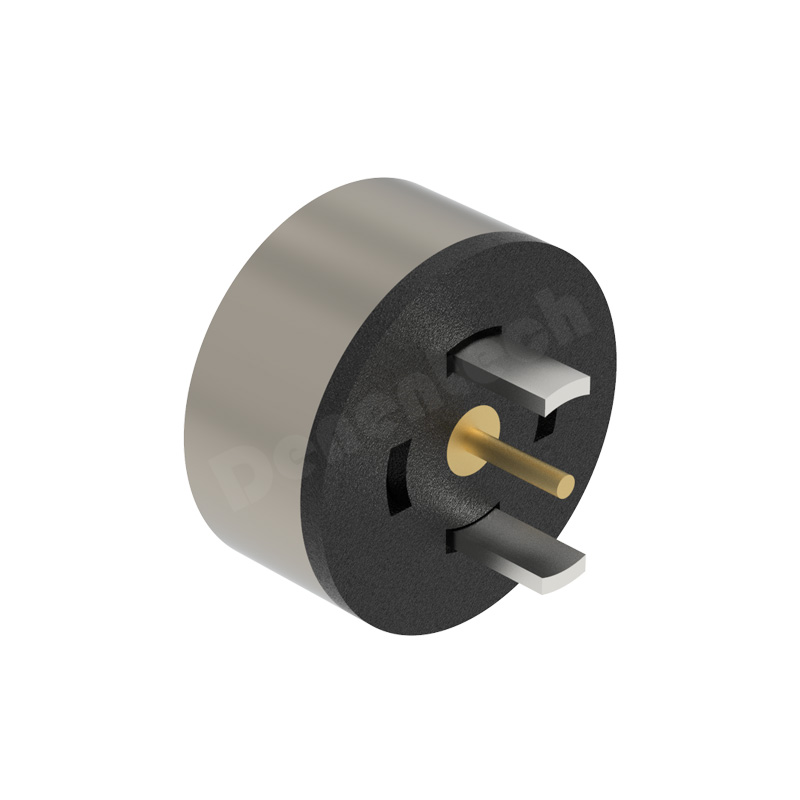

Denentech directly supplied by the factory Round magnetic pogo pin 1P male magnetic power connector

Serial Code : Product Code : MVPM-01Y050100D1

Rated current :

1.0AMP

Contact Resistance :

50mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product details Features Drawing Accessory products Related products Knowledge Related videos Contact us

Round magnetic Connector Uses High Quality Raw Materials

The Denentech round magnetic pogo pin pogo pin connector is composed of pogo pins, magnets and plastics. It adopts high-quality brass, heat-resistant plastics and strong magnets to enable simultaneous charging and data transmission.

Round magnetic Connector Uses High Quality Raw Materials
High Quality Round Magnetic Connector

High Quality Round Magnetic Connector

The round magnetic pogo pin features various external structural designs and super-strong magnetic automatic adsorption. It has changed the traditional connector methods, enhanced the user experience, and ensured a stable and reliable connection between the male and female connectors.

Application Of Round Magnetic Connector

The Denentech round magnetic pogo pin connector supports high customization to meet specific performance requirements such as stroke, height and electrical properties. Moreover, its unlimited molding design can create many different shapes and styles for specific applications, enabling it to be widely used in various fields of multiple industries.

Application Of Round Magnetic Connector
product name

Round magnetic pogo pin 1P male

Plastic height

H6.0mm

Rated current

3AMAX

Connection type

Straight DIP

Pin number

1pin

Pin material

Brass

Surface treatment

Au 1-3u"

Plastic material

HTN

Magnets

N52NdFeB

Product features

temperature resistance and flame retardant

Application fields

Smart wear, smart home, aerospace, medical equipment, industrial equipment, etc.
