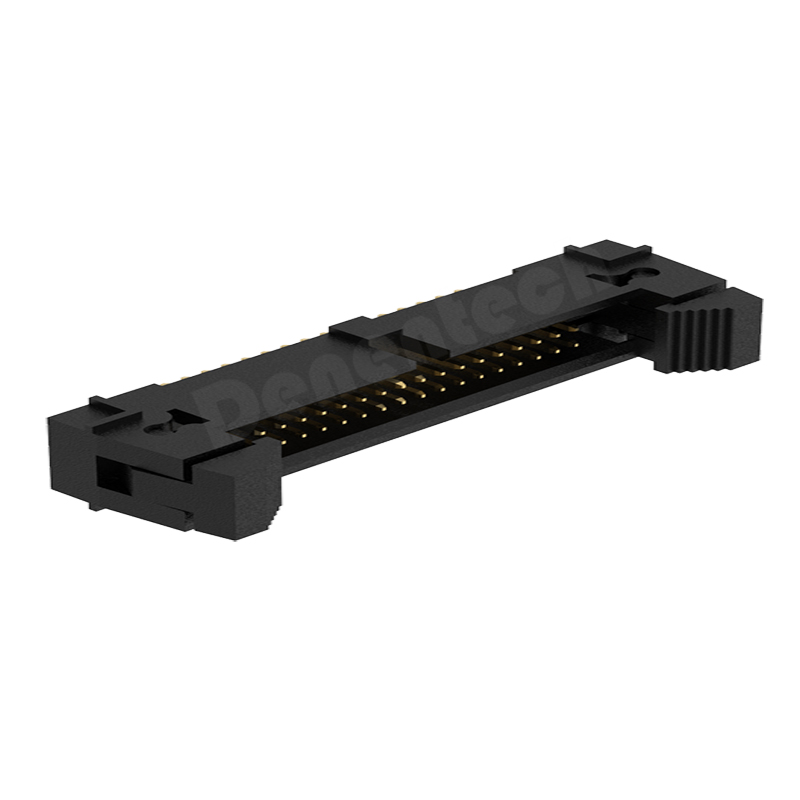

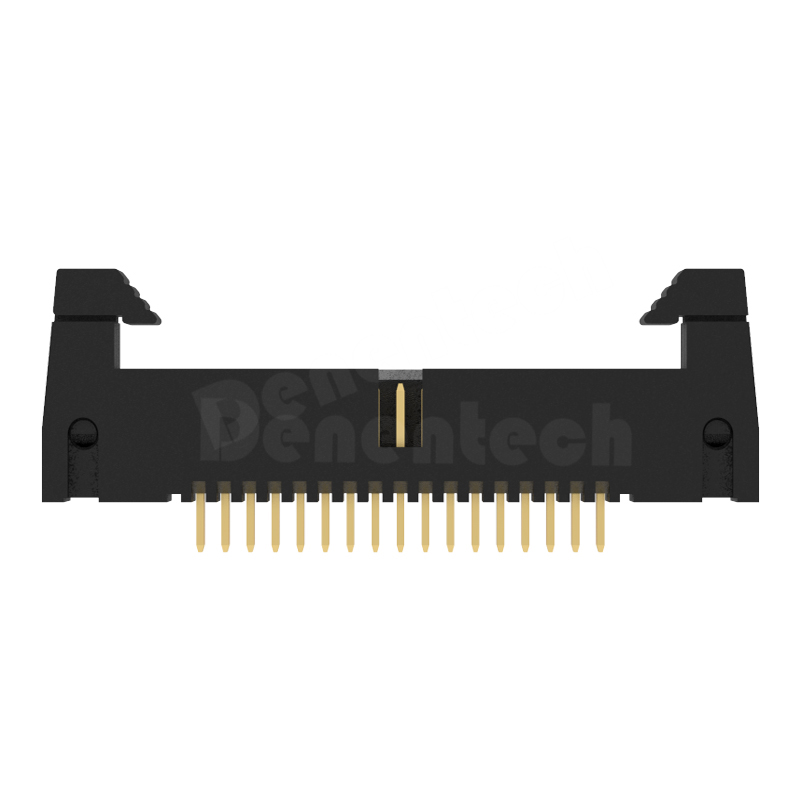

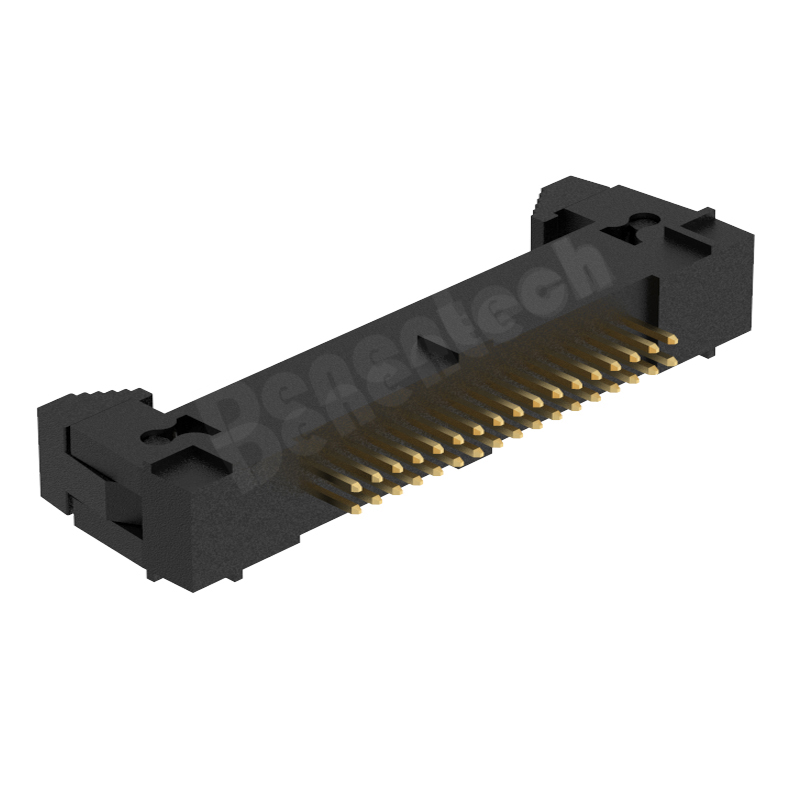

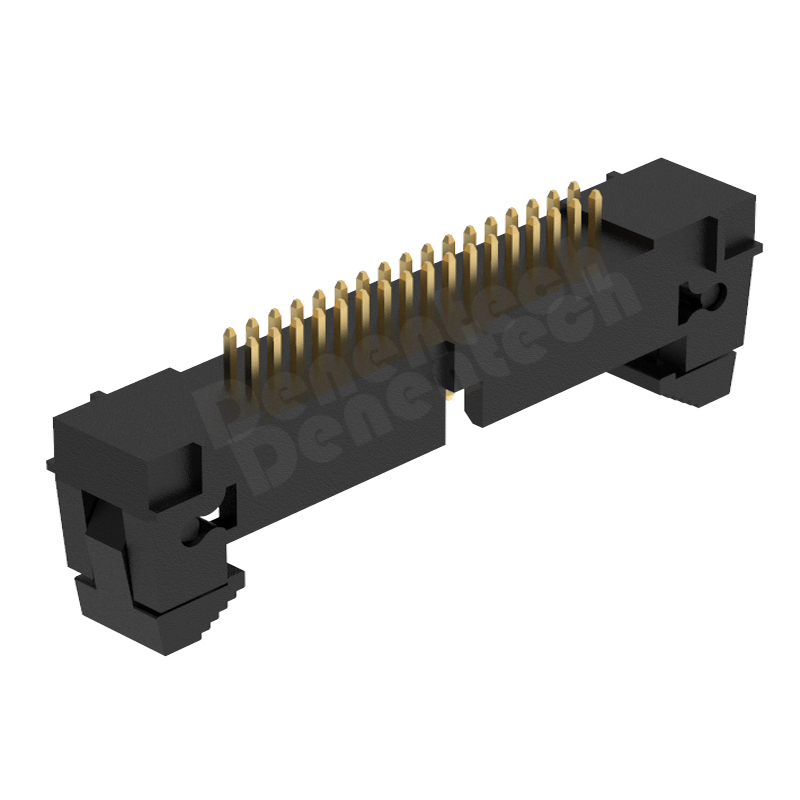

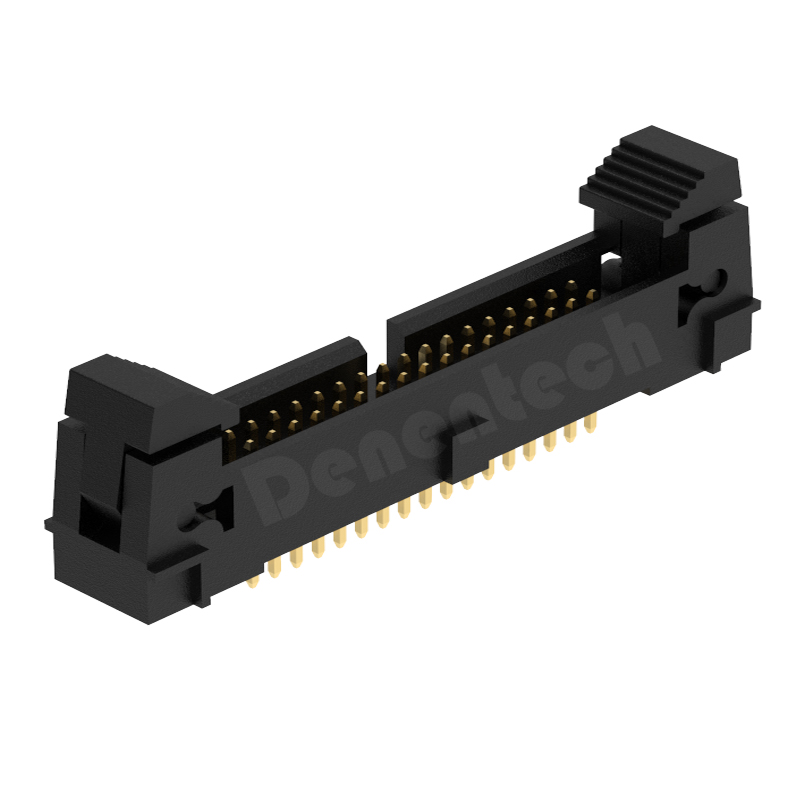

Denentech professional factory 1.27MM ejector header H11.30MM straight buckle bracket ejector header

Serial Code : Product Code : E3XX-G0ST11102

Rated current :

1.0 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product detailsFeaturesDrawingRelated productsKnowledgeRelated videos标题

Ejector header uses high quality raw materials

The 1.27mm ejector header connector product material adopts international standard plastic raw materials to ensure the reliability and stability of product quality.

Ejector header uses high quality raw materials
High quality ejector header products

High quality ejector header products

Denentech 1.27mm ejector header connector strictly controls every aspect of production management in accordance with the requirements of ISO9001 management system.

Application of ejector header connector

The stable mechanical structure and large contact area of the Denentech ejector header connector ensure the reliability of the connection and maintain good electrical performance in various environments, making it suitable for a variety of electronic devices and systems.

Application of ejector header connector
Product name

1.27mm ejector header connector

Pitch

1.27mm

Plastic height
Row number

dual row

Pin number

6-100pin

Connection type

Straight DIP

Rated current

1A

Pin material

Brass

Surface treatment

Gold Flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
