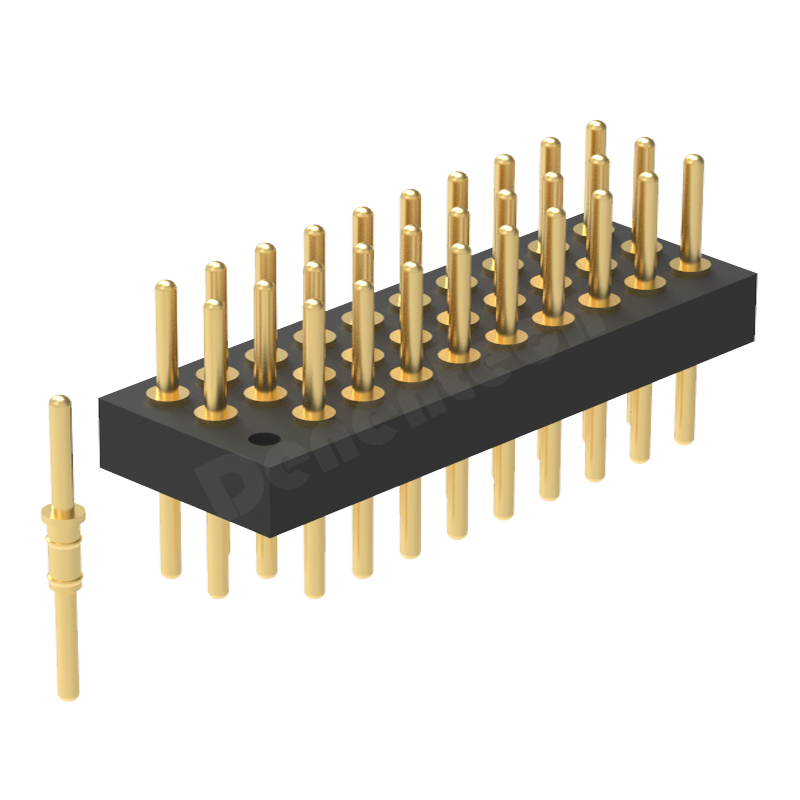

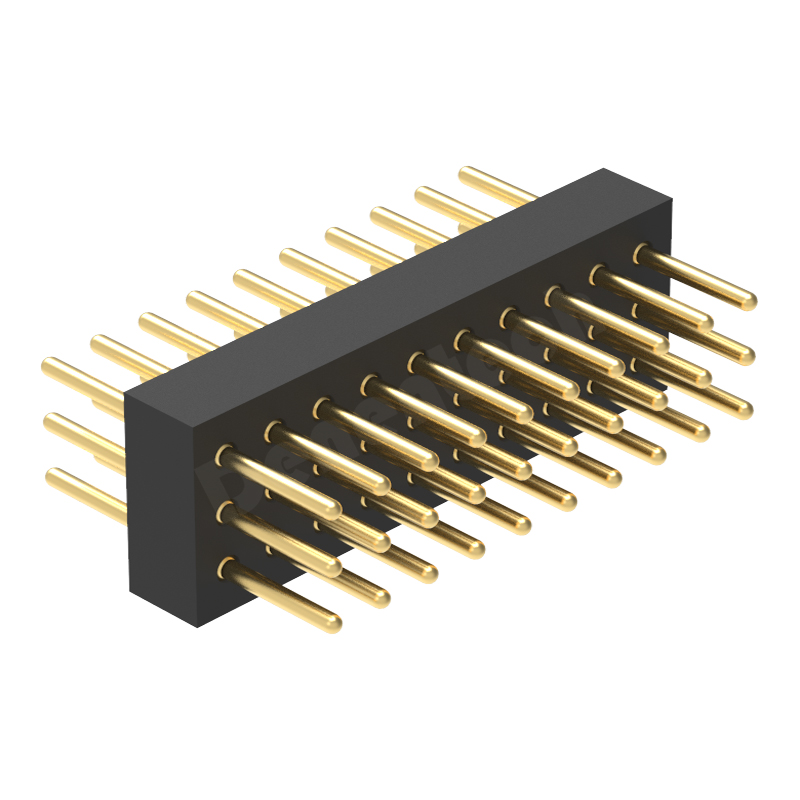

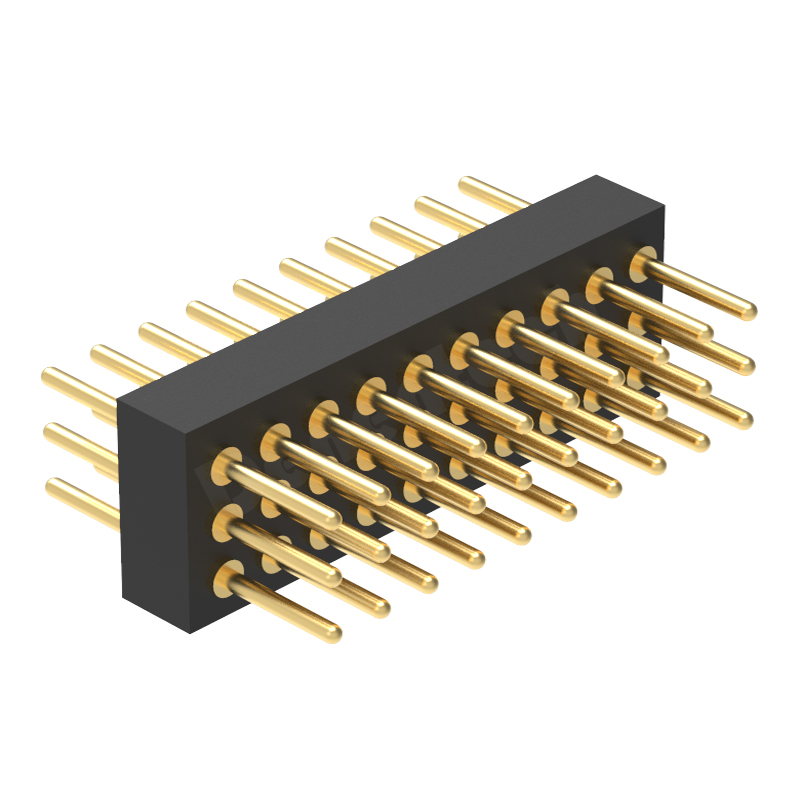

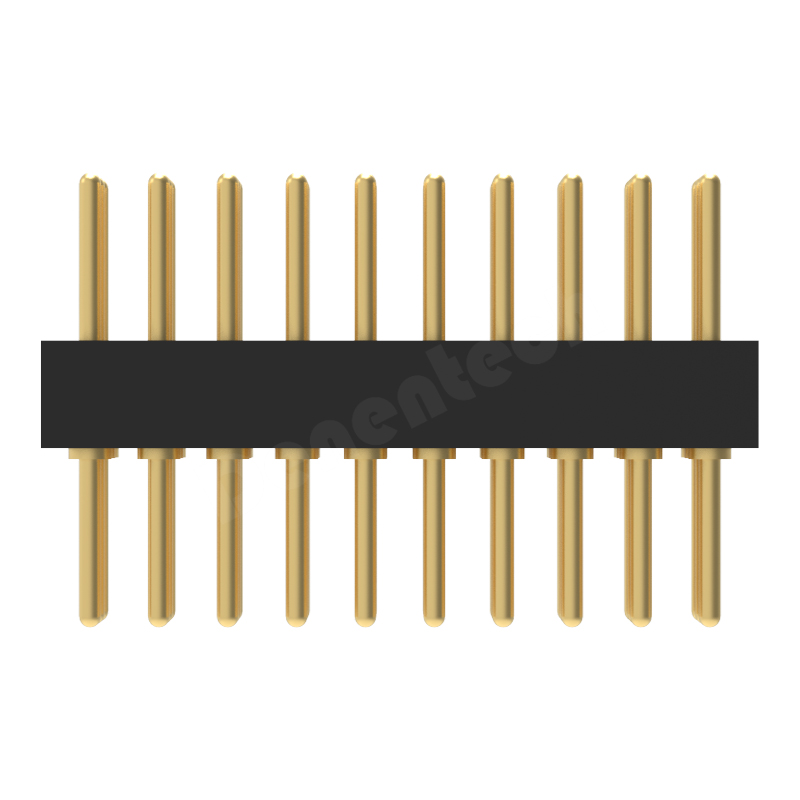

Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine
Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine
Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine
Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine
Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine
Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine

Denentech low price 1.27MM machined pin header H1.90xW4.52 triple row straight pin header cutter machine

Product Code : MP33-XXG019ST7XX Product Info :

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

Rated current :

1.0AMP

Contact Resistance :

10mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS

Product Specification

product name 1.27MM machined pin header H1.90xW4.52 triple row straight DIP
Pitch 1.27mm
Pin specification 0.41mm
Plastic height 1.9mm
Rated current 1A
Row number triple row
Connection type Straight DIP
Pin number 9-150pin
Pin material brass
Surface treatment gold plating, tin plating and semi-Suk Kim gold plating. (floating gold, 0.8u, 1u, 3u, etc.)
Plastic material PPS
Product features Temperature resistance/flame
PIN length customized
Application fields Communication, machinery manufacturing, industrial control, military industry, rail transit, electric power, medical treatment, etc.
Online Inquiry Sample Request

PIN HEADER FEMALE HEADER MACHED PIN HEADER MACHED FEMALE HEADER BOX HEADER EJECTOR HEADER POGO PIN SERVO CONNECTOR DIN41612 HEADER WAFER HEADER D-SUB CONNECTOR MAGNETIC POGO PIN CABLE INDUSTRIAL CONTROL CABLE D-SUB CABLE HIGH SPEED CABLE SERVO CABLE

Product documentation
post

drawing

Click on the file to apply for downloading, and we will send it to you by email. Please pay attention to your email.
