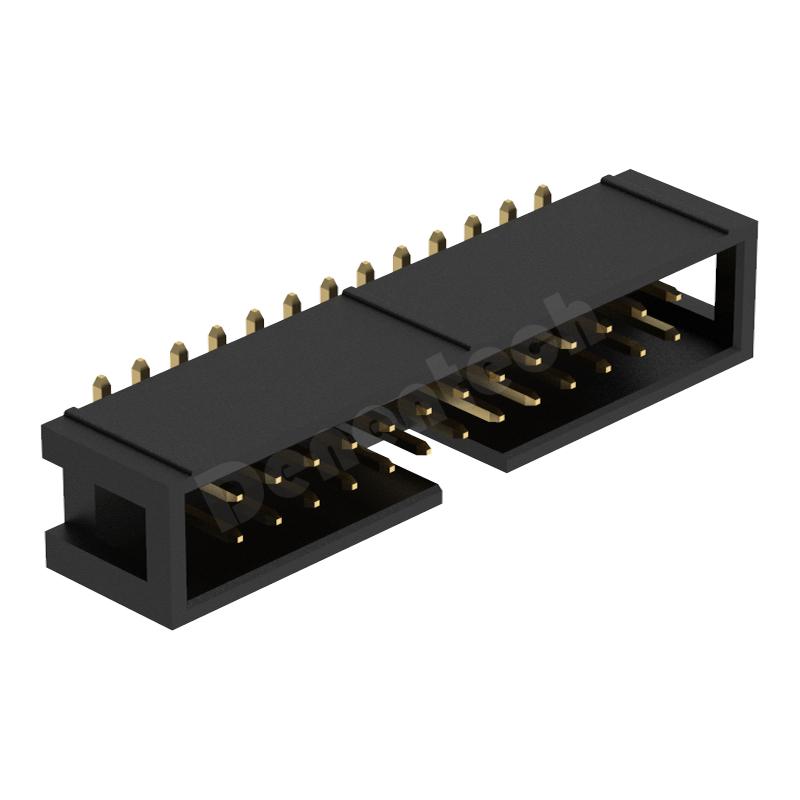

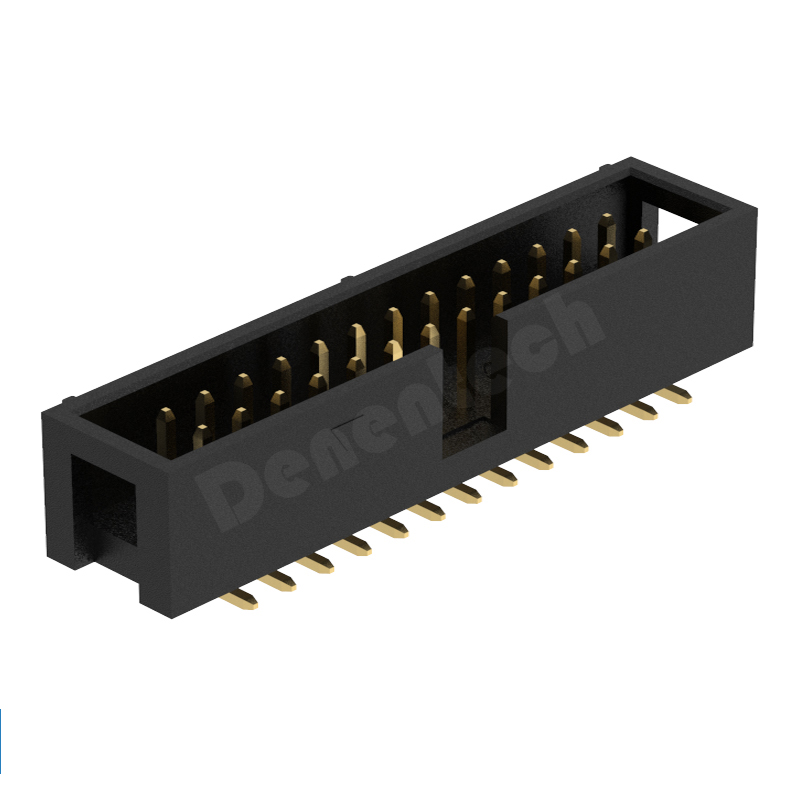

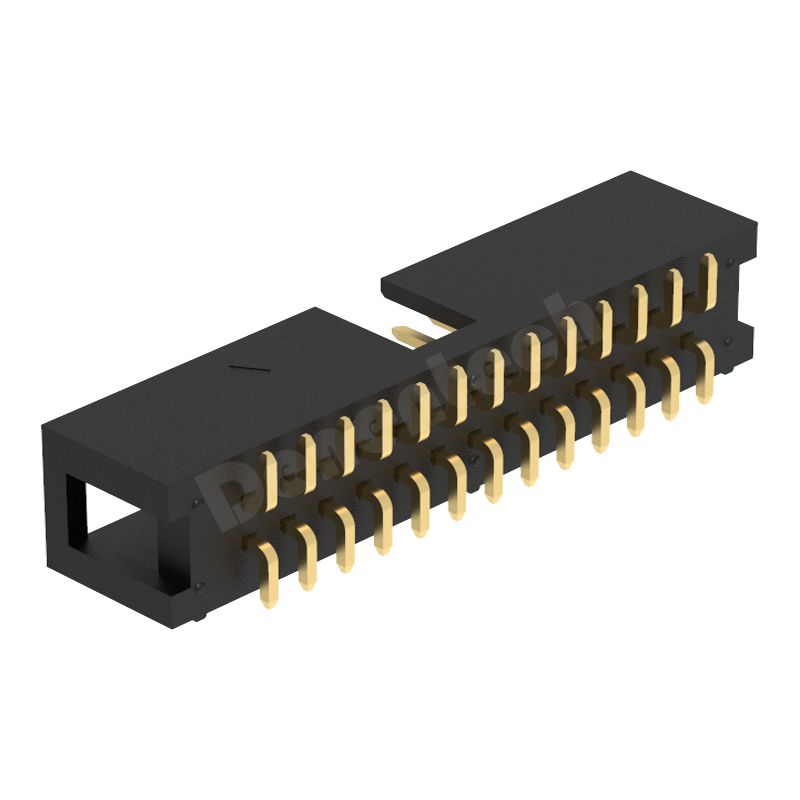

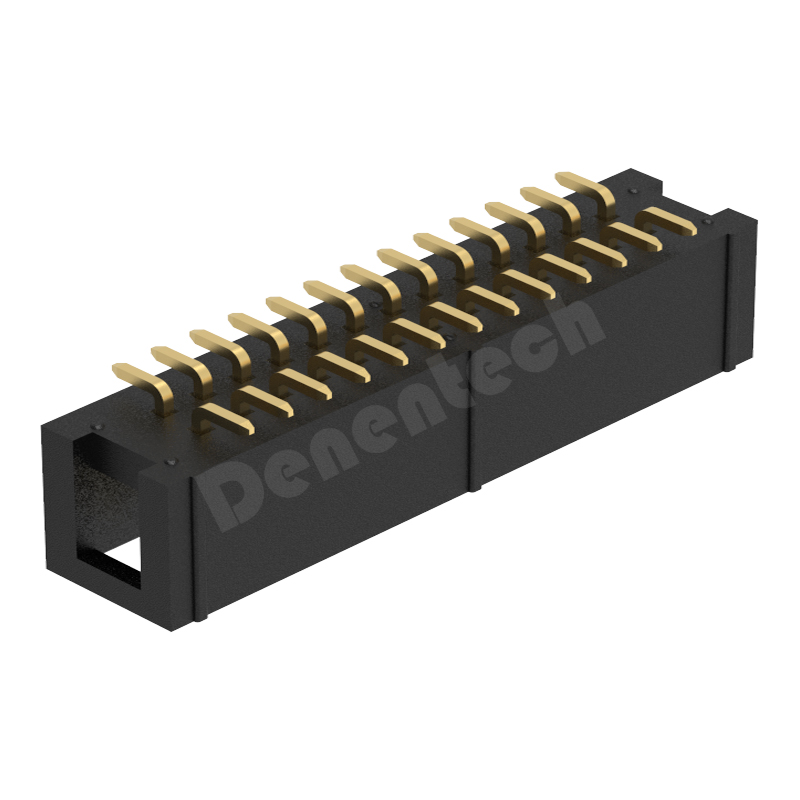

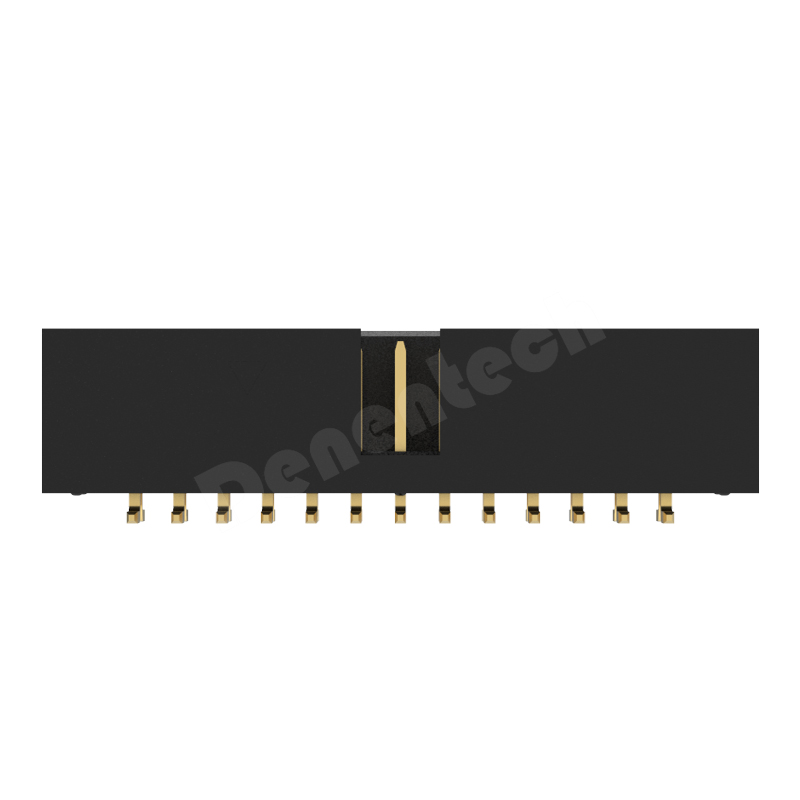

Denentech factory Outlet 2.54MM H8.9MM dual row straight SMT box header

Serial Code : Product Code : B590-XXG0SM111XX

Rated current :

3.0 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product details Features Drawing Accessory products Related products Knowledge Related videos Contact us

Box header uses high quality raw materials

The 2.54mm Box header connector product material adopts international standard plastic raw materials to ensure the reliability and stability of product quality.

Box header uses high quality raw materials
High quality Box header products

High quality Box header products

Denentech 2.54mm Box header connector strictly controls every aspect of production management in accordance with the requirements of ISO9001 management system.

Application of Box header connector

The stable mechanical structure and large contact area of the Denentech Box header connector ensure the reliability of the connection and maintain good electrical performance in various environments, making it suitable for a variety of electronic devices and systems.

Application of Box header connector
Product name

2.54mm Box Header H8.9mm Dual Row Straight SMT

Pitch

2.54mm

Plastic height

H8.9mm

Row number

dual row

Pin number

6-64pin

Connection type

Straight SMT

Rated current

3A

Pin material

Brass

Surface treatment

Gold Flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
