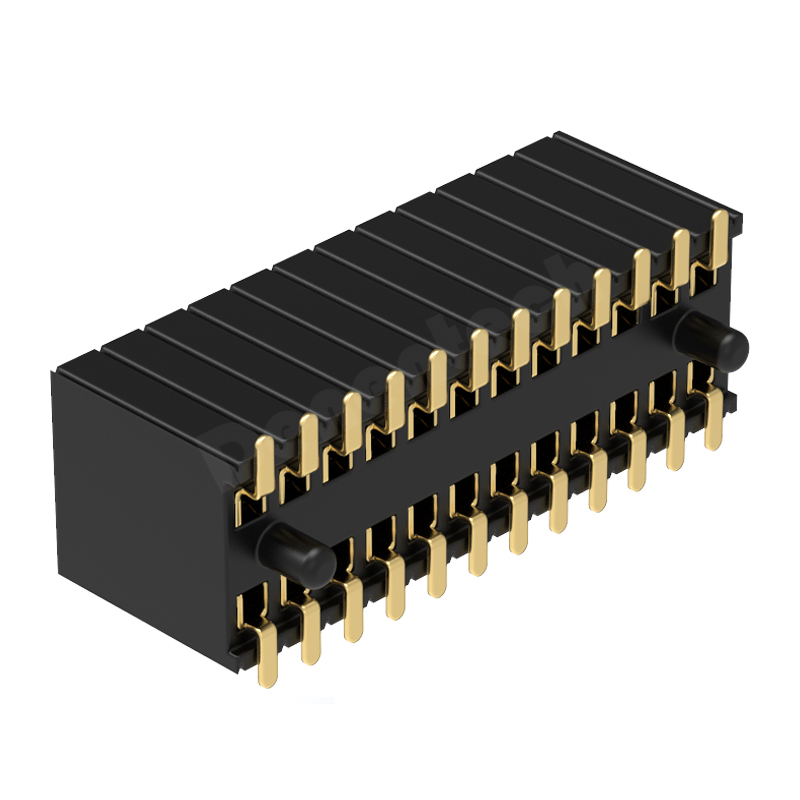

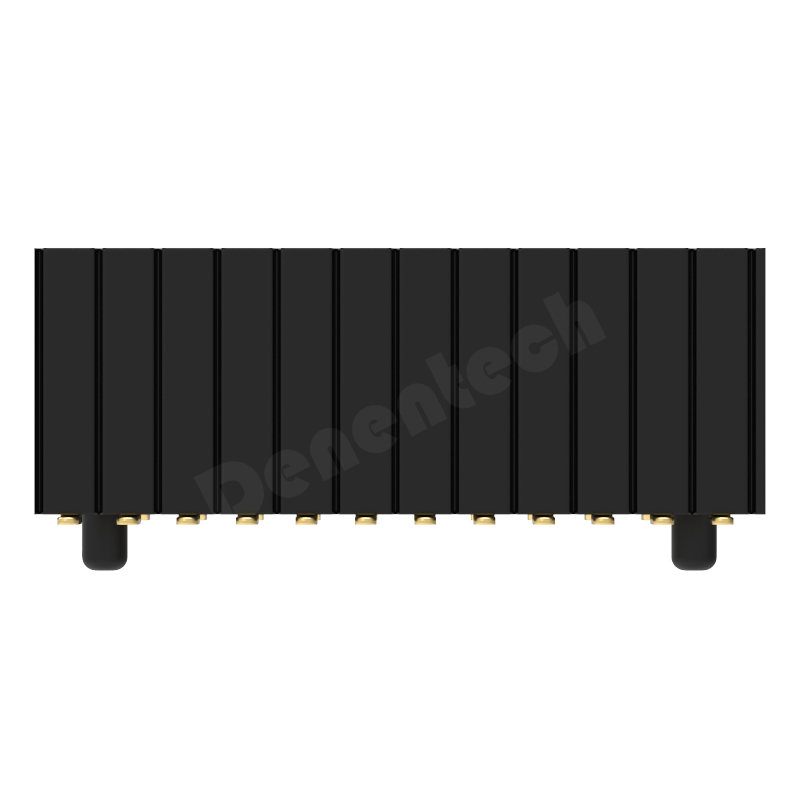

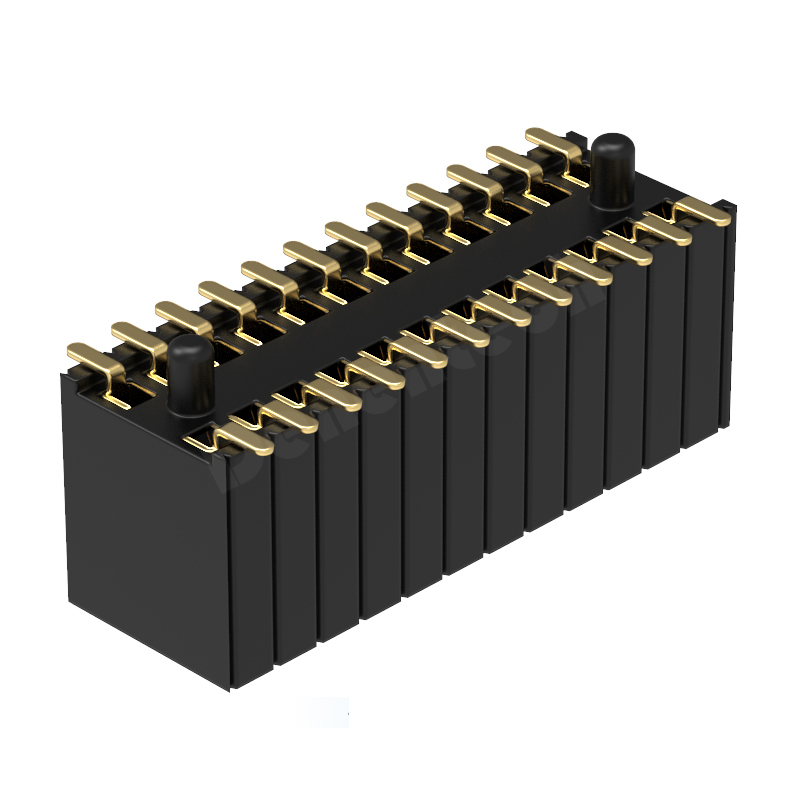

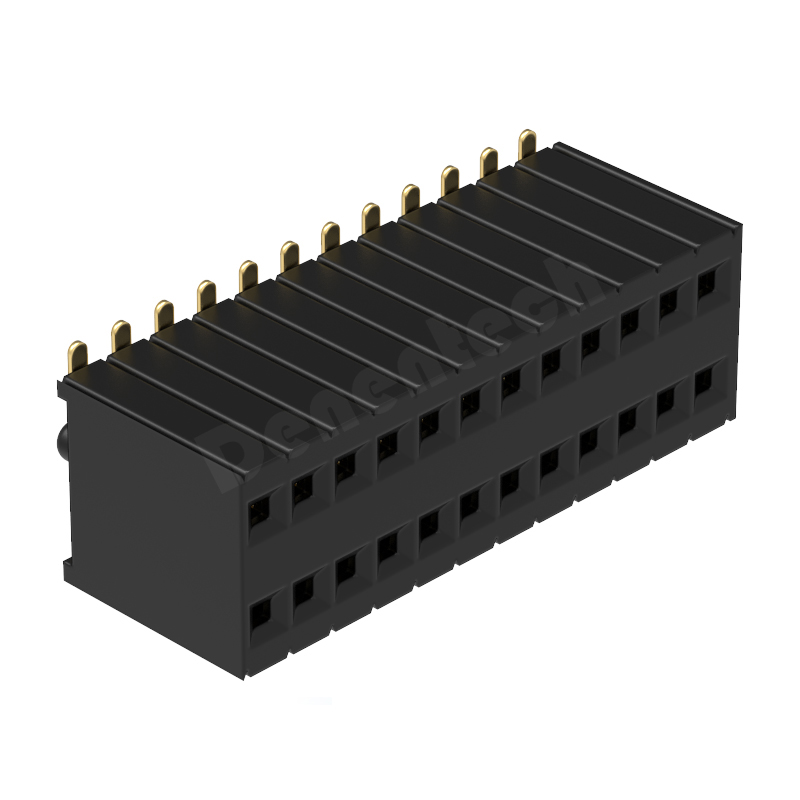

Denentech factory directly supply 1.27*2.54mm pitch H5.7mm dual row straight SMT female header connector

Serial Code : Product Code : F357-XXDG0SMXXX

Rated current :

1.0AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube/PE Bag/Blister Tray (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
Product Details Features Drawing Accessory Products Related Products Knowledge Related videos Contact us

Female Header uses high quality raw materials

The Denentech 1.27*2.54mm female connector uses high-quality brass and high-temperature plastic according to international standards, ensuring faster signal current transmission speed and lower signal loss rate, thereby improving the stability and reliability of the connection.

Female Header uses high quality raw materials
Female Header electroplating process

Female Header electroplating process

The surface of the Denentech 1.27*2.54mm female header is treated with multiple layers of electroplating to ensure that the 1.27*2.54mm female header passes strict ROHS verification and 24H salt spray testing.

Denentech Female Header automated production

Denentech adopts fully automated production of 1.27*2.54mm pitch female header, with automatic inspection programs, quality control personnel sampling, and advanced testing equipment to ensure high quality female header connectors!

Denentech Female Header automated production
Product name :

1.27*2.54mm pitch H5.7mm dual row straight SMT female header connector

Pitch

1.27*2.54mm

Plastic height

H5.7mm

Pin length

2.4mm,2.8mm,etc

Row number

dual row

Pin number

4-80pin

Connection type

Straight SMT

Rated current

1A

Pin material

Brass

Surface treatment

gold flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
