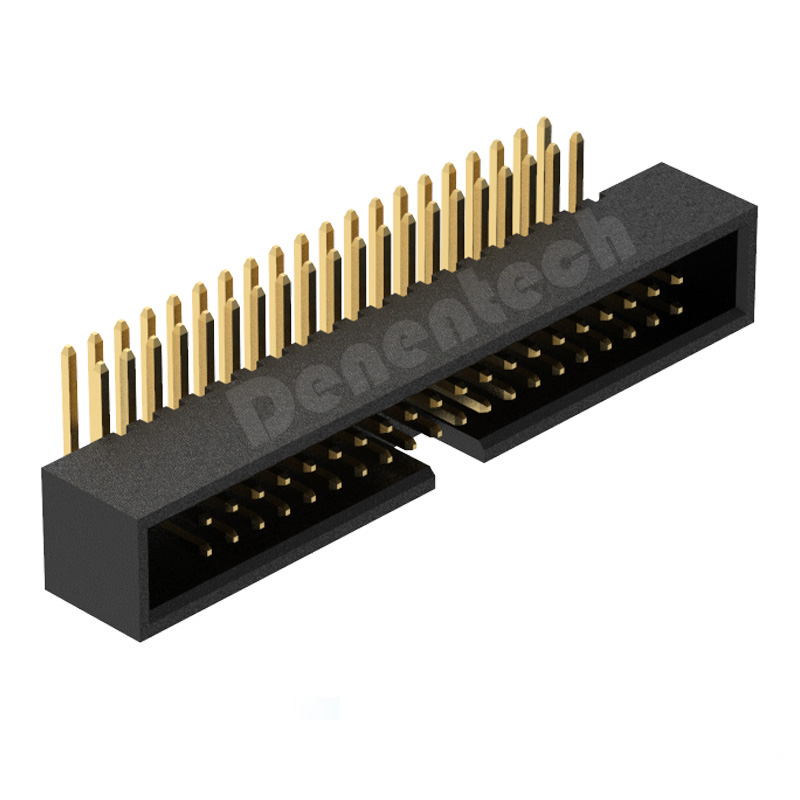

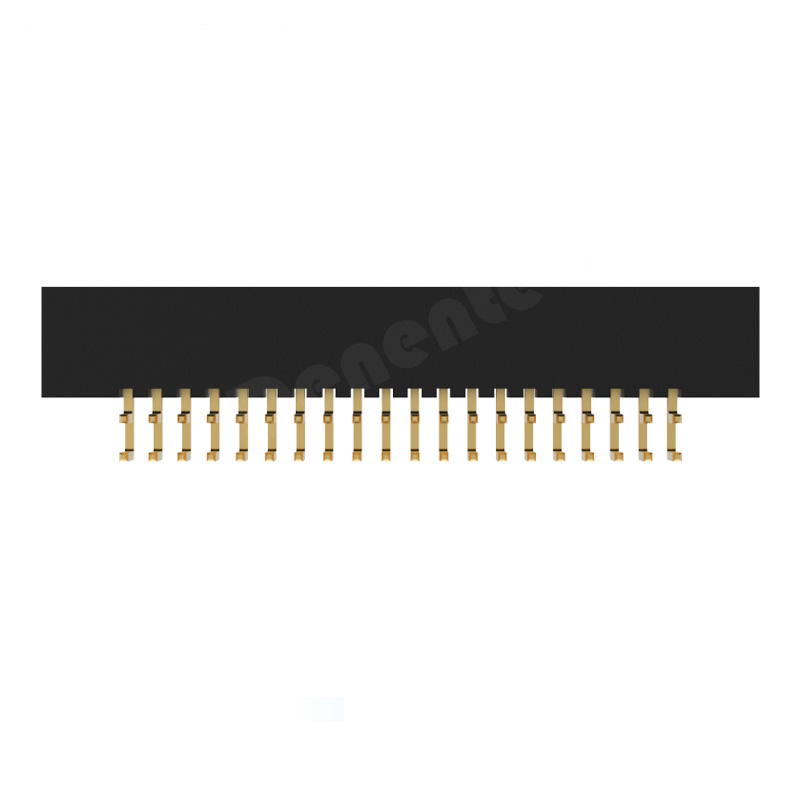

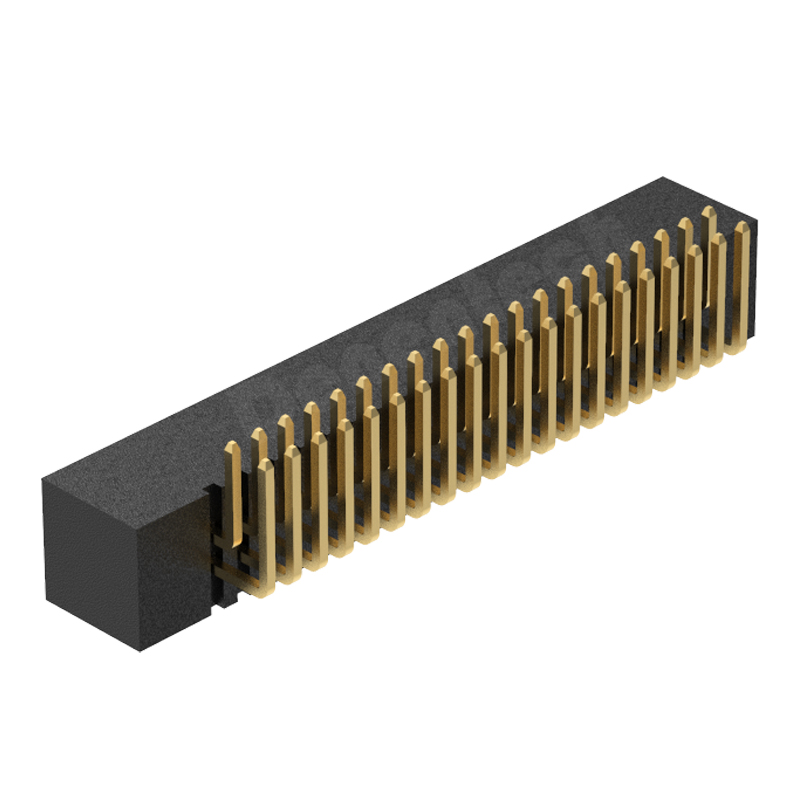

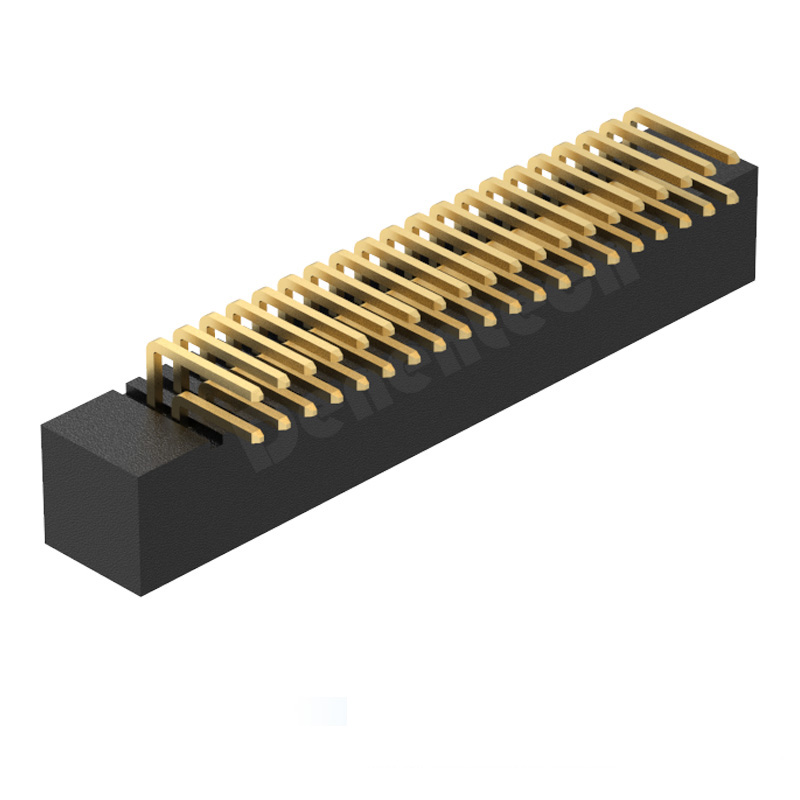

Denentech hot selling product 1.27MM H4.9 dual row right angle DIP box header

Serial Code : Product Code : B349-XXG0RA611XX

Rated current :

1.0 AMP

Contact Resistance :

20mΩ Max

Withstand Voltage :

500VAC/Minute

Insulation Resistance :

1000mMin

Operation Tempererature :

-40~105℃

Contact Material :

Copper Alloy

Contact Plating :

Gold Or Nickel-Plated

Insulating material :

UL94V-0

Standard :

PA6TorLCP+30%GF

Package :

Tube (standard)

Delivery time :

7-10 days

Environmental protection :

ROHS
产品详细信息
Product DetailsFeaturesDrawingAccessory ProductsRelated ProductsKnowledgeRelated videosContact us

High quality raw materials

The1.27mmmm Box header connector product material adopts international standard plastic raw materials to ensure the reliability and stability of product quality

High quality raw materials
High quality Box header products

High quality Box header products

Denentech 1.27mm Box header connector strictly controls every aspect of production management in accordance with the requirements of ISO9001 management system

Application of Box header connector

The stable mechanical structure and large contact area of the Denentech Box header connector ensure the reliability of the connection and maintain good electrical performance in various environments, making it suitable for a variety of electronic devices and systems.

Application of Box header connector
Product name

1.27MM H4.9 dual row right angle DIP box header

Pitch

1.27mm

Plastic height

H=4.90mm

Row number

dual row

Pin number

6-100pin

Connection type

Right Angle DIP

Rated current

1A

Pin material

Brass

Surface treatment

Gold Flash

Plastic materials

PBT,PA6T,LCP,etc.

Product features

high temperature resistance/flame retardant

Application

consumer electronics, automotive electronics, industrial automation, communication electronics, etc
